Showcasing Ahmedabad’s new BRTS bus(Photos and detail)
Showcasing Ahmedabad’s new BRTS bus
By our correspondent
Ahmedabad, DeshGujarat, 2 January, 2008

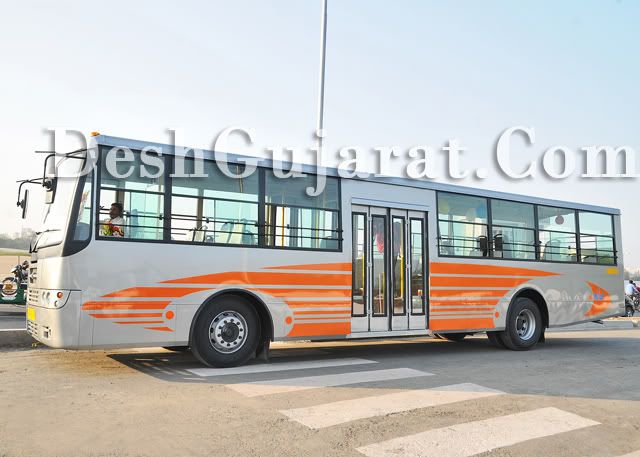

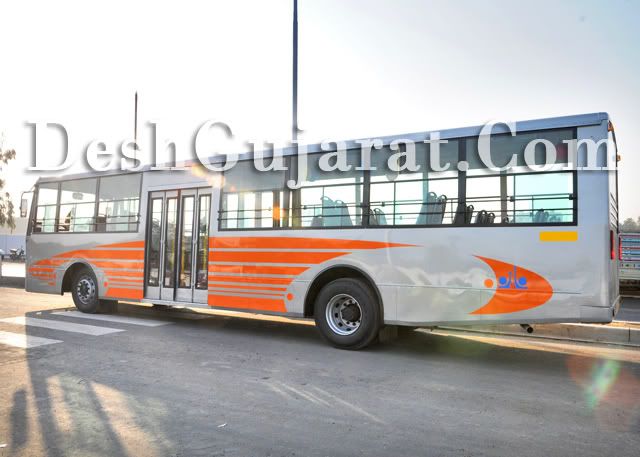

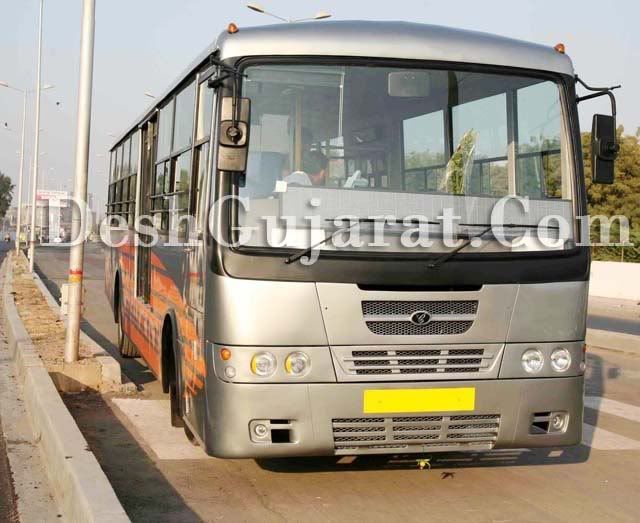

DeshGujarat presents first look of prototype of the bus that would be on road under the Janmarg Bus Rapid Transit System(BRTS) project in May 2009 in Ahmedabad. Such buses will start trial runs from next week onwards in the BRTS corridor that has been already partially built in the western part of the city of Ahmedabad.
Following are some of the major features in new BRTS bus.
-Non A.C. bus
-Length of the bus: 12 meter
-Width: 2.5 meter
-Height 3.00 meter
-Floor height: 940 mm(0.94 meter)
-Sitting capacity: 35 passengers+driver
-Standing capacity: 50 passengers
-Total capacity: 85 passengers
-Diesel-B.S. III
-Width of right side door: 1.8 meter
-Width of left side door: 1.45 meter
-Numetic doors which can be controlled by driver
-Injection molded Grey color sits
-Anti skid silicon PVC flooring
-Chases by Tata company
-Approximate price per bus: Around 27 lakh
-Buses to be bought as of now: 50 buses
-Contract: Chartered Speed Private Limited Company has been given contract for bus procurement, operation and maintenance for seven years on Rs 34.11 per Km rate.
-Higher powered 24 valve engine(183 HP as against 120/130)
-Can carry people without having struggle
-Allows for smoother pickup
-Reduction in engine noise, smoke and temperature
-Bharat Stage -III compliant
Comfortable Riding Quality at a reasonable price through a combination of Air suspension and leveler suspension
-New generation breaks, Power steering
-Flat floor so that passenger can move inside the bus easily and more capacity
-Easier maintenance
-Washable,
-Molded seats
-IP 65 code for electronics weather protection
-Special anti-skid flooring
-A 2.2 m wide, driver operated doors on the right hand side(Single station to serve both direction traffic). This is the first time that a bus with right hand side doors will be introduced in India.
-At level boarding to give metro like convenience, Left-side door for flexibility(Initial period going out of corridor)
-Yellow colored handrail for visually challenged to see
-GPS enabled driver console. This will enable real time tracking of buses and also facilitate sending messages to the driver
-36 seats with an option for adding two more seats
-Special LED displays on three sides to enable passengers to read the destination easily
-Ticket validating machine inside the bus to make traveling more passenger friendly
-Big sliding windows with tinted glass to give a contemporary look
Related Links:
Ahmedabad BRTS will introduce 10 Air Conditioned buses(Video)
Ahmedabad’s BRTS buses will have Smart Card entry(Video)
| << Previous Post |
Very thankful to persons who has been making a very good system in challening city like ahemedabad. We have to improve just our roads, will be better of bus life time and easy for driving.
Thanks,
Can we improve the attitude of Ahmedabadis ?
All this material improvements can be done in no time.Real work is improving the traffic sense and sense to help the community and fellow citizens. Pl this is the time if u want your next geenration to change…start working on them today, otherwise same old story…
please put two or three dustbin. i read all facility inside but i do not find that. one more suggestion bus driver and conductor must be atleast graduetes and non smoker not even chewing tobacco. they must have to passed exam by rto and gujarat tourisom corporation.they must understand safty aspect by all mean. conducter is responsible person to maintain all interior and cleanliness inside the bus. if this two guys follow all rule regulation then they can handle and force people to act resposibly
this is really great system if u dont believe me read this article first
http://www.skyscrapercity.com/showthread.php?t=364192
go on the link below for complete info
http://www.egovamc.com/BRTS/BRTS.ASP
TOI article
CITY ON THE MOVE
BRTS buses to make travel for kids comfortable
Kumar Manish | TNN
Ahmedabad: Kids will be the special guests in the newly launched metallic silver coloured Bus Rapid Transit System (BRTS) buses once they gets rolling.
Ahmedabad Janmarg Limited (AJL) authorities are mulling over possibilities of having separate seating facilities for kids riding on BRTS buses.
A senior AMC official says, “We are working on improvisations required in the prototype of BRTS bus. At present, seating facilities for kids have not been taken care of. We want to make travel for families with kids comfortably.”
“We might introduce a small set for kids to travel comfortably. But, we are looking into the legalities of such provisions.” adds the official.
AJL will be run by AMC, Ahmedabad Urban Development Authority(AUDA) and Government of Gujarat which will govern the BRTs operations.
Talking about the intial feedback received f ro m p u bl i c and experts, a senior A M C official said, “The feedbacks are mostly related with the appearance of the facade, humps in the interiors and rough edges. But, most of them appreciated the comfort factor and spacious interiors of the bus.”

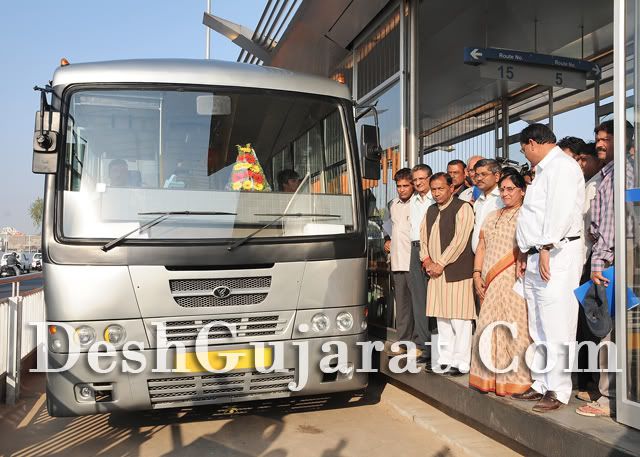

“We have already started working on the suggestions” adds the official. The much awaited prototype BRTS bus glided at GMDC bus stop on BRTS corridor on Friday.
On the prototype BRTS bus, HM Shivanand Swamy, Associate Director, CEPT says,“This is a customised bus suited for Bus Rapid Transit System in the city. And this is going to be the model BRTS bus for other city to follow in the near future. The bus takes care of all the necessary comfort factor, swanky look and affordable pricing.”
In the first phase of BRTS, AMC will be running ten Air Conditioned (AC) and forty non-AC buses of same built.
The BRTS will have exclusive bus lanes down the central corridor, platform-level boarding, higher-capacity, and an integrated management structure.
BUS ON TRACK
BRTS bus will follow a strict schedule with close monitoring on arrival and departure of each BRTS bus through operating centre.
Wider space for mixed traffic has been provided by pushing the bus stations slightly away from the junctions to enable quick clearance of traffic.
Improved junction geometry and automatic traffic signalling system has been planned on the corridor to increase the overall junction capacity, thereby improving speeds for both BRTS bus as well as mixed traffic.
Route rationalisation of AMTS and BRTS is being done and a synchronised system will follow to avoid any confrontations between the two bus service.
Fibre moulded seats adapatable to extreme temperatures.
GPS enabled driver console for real time tracking of buses and message sending to the driver.
